Door Hangers
1020 Standard Wheel Door Hanger
1025 Ball Bearing Wheel Door Hanger

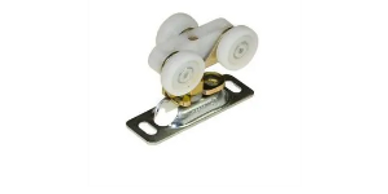

1020 Standard Wheel Door Hanger
- 80lbs [36kg] Weight capacity
- 3/4" [19mm] Wheel diameter
- Solid Nylon Wheel
- Height Adjustable
- Top Mount Hanger Plate
- Commercial Grade
- Compatible with 111 or 118F Series Track Only
Manufacturer part number: 1020
1021 Hanger Plate
1025 Ball Bearing Wheel Door Hanger
1020 Standard Wheel Door Hanger
- Compatible with 1020 or 1025 Hanger Only
Manufacturer part number: 1021
1025 Ball Bearing Wheel Door Hanger
1025 Ball Bearing Wheel Door Hanger
1026 Side Mount Hanger 3/4" [19mm] Door
- 150lbs [68kg] Weight capacity
- 3/4" [19mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Height Adjustable
- Top Mount Hanger Plate
- Commercial Grade
- Compatible with 111 or 118F Series Track Only
Manufacturer part number: 1025

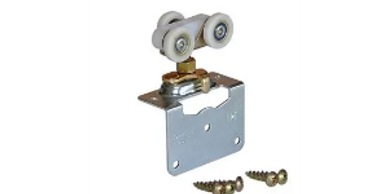

1026 Side Mount Hanger 3/4" [19mm] Door
1027 Side Mount Hanger 1-1/8" [29mm] Door
1026 Side Mount Hanger 3/4" [19mm] Door
- 3/4" [19mm] Door Thickness Only
- 150lbs [68kg] Weight capacity
- 3/4" [19mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 111 Series Track Only
Manufacturer part number: 1026

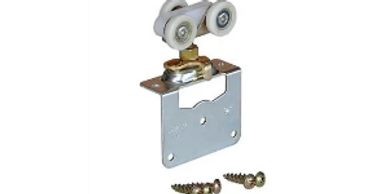

1027 Side Mount Hanger 1-1/8" [29mm] Door
1027 Side Mount Hanger 1-1/8" [29mm] Door
1027 Side Mount Hanger 1-1/8" [29mm] Door
- 1-1/8" [29mm] Door Thickness Only
- 150lbs [68kg] Weight capacity
- 3/4" [19mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 111 or 118F Series Track Only
Manufacturer part number: 1027

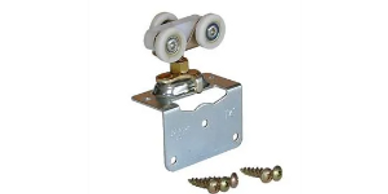

1028 Side Mount Hanger 1-3/8" [35mm] Door
1027 Side Mount Hanger 1-1/8" [29mm] Door
1027 Side Mount Hanger 1-1/8" [29mm] Door
- 1-3/8" [35mm] Door Thickness Only
- 150lbs [68kg] Weight capacity
- 3/4" [19mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 111 Series Track Only
Manufacturer part number: 1028
1032 Side Mount Hanger Plate 3/4" [19mm] Door
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
- 3/4" [19mm] Door Thickness Only
- Carrier NOT included
- Compatible with 111 Series Track only
Manufacturer part number: 1032
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
- 1-1/8" [29mm] Door Thickness Only
- Carrier NOT included
- Compatible with 111 or 118F Series Track only
Manufacturer part number: 1033
1034 Side Mount Hanger Plate 1-3/8" [35mm] Door
1033 Side Mount Hanger Plate 1-1/8" [29mm] Door
1034 Side Mount Hanger Plate 1-3/8" [35mm] Door
- 1-3/8" [35mm] Door Thickness Only
- Carrier NOT included
- Compatible with 111 Series Track only
Manufacturer part number: 1034
1020/1025 Adjustment Bolt
1120 Standard Wheel Door Hanger
1034 Side Mount Hanger Plate 1-3/8" [35mm] Door
- Compatible with 1020 and 1025 Hanger
- #12-24 x 1-21/64
Manufacturer part number: 315113
1120/1125 Adjustment Bolt
1120 Standard Wheel Door Hanger
1120 Standard Wheel Door Hanger
- Compatible with 1120 and 1125 Hanger
- 1/4-20 x 1-21/64
Manufacturer part number: 315103
1120 Standard Wheel Door Hanger
1120 Standard Wheel Door Hanger
1120 Standard Wheel Door Hanger
- 125lbs [57kg] Weight capacity
- 1" [25mm] Wheel diameter
- Solid Nylon Wheel
- Top Mount Hanger Plate
- Commercial Grade
- Compatible with 100, 134F, 138F, 2610F Series Track
Manufacturer part number: 1120
1121 Door Hanger Plate
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
- Compatible with 1120 or 1125 Hanger Only
Manufacturer part number: 1121
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
- 1-1/8" [29mm] Door Thickness Only
- Carrier NOT included
- Compatible with 100 Series Track only
Manufacturer part number: 1122
1123 1-3/8" [35mm] Side Mount Hanger Plate
1122 Side Mount Hanger Plate, 1-1/8” [29mm] Door
1123 1-3/8" [35mm] Side Mount Hanger Plate
- 1-3/8" [35mm] Door Thickness Only
- Carrier NOT included
- Compatible with 100 and 138F Series Track only
Manufacturer part number: 1123
1124 1-3/4" [44mm] Side Mount Hanger Plate
1124 1-3/4" [44mm] Side Mount Hanger Plate
1123 1-3/8" [35mm] Side Mount Hanger Plate
- 1-3/4" [44mm] Door Thickness Only
- Carrier NOT included
- Compatible with 100 and 134F Series Track only
Manufacturer part number: 1124
1125 Ball Bearing Door Hanger
1124 1-3/4" [44mm] Side Mount Hanger Plate
1126 Side Mount Hanger, 1-1/8” [29mm] Door
- 200lbs [91kg] Weight capacity
- 1" [25mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Top Mount Hanger Plate
- Commercial Grade
- Compatible with 100, 134F, 138F, 2610F Series Track
Manufacturer part number: 1125
1126 Side Mount Hanger, 1-1/8” [29mm] Door
1124 1-3/4" [44mm] Side Mount Hanger Plate
1126 Side Mount Hanger, 1-1/8” [29mm] Door
- 1-1/8" [29mm] Door Thickness Only
- 200lbs [91kg] Weight capacity
- 1" [25mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 100 Series Track Only
Manufacturer part number: 1126
1127 1-3/8" [35mm] Side Mount Hanger
1127 1-3/8" [35mm] Side Mount Hanger
1127 1-3/8" [35mm] Side Mount Hanger
- 1-3/8" [35mm] Door Thickness Only
- 200lbs [91kg] Weight capacity
- 1" [25mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 100, 138F Series Track Only
Manufacturer part number: 1127
1128 1-3/4" [44mm] Side Mount Hanger
1127 1-3/8" [35mm] Side Mount Hanger
1127 1-3/8" [35mm] Side Mount Hanger
- 1-3/4" [44mm] Door Thickness Only
- 200lbs [91kg] Weight capacity
- 1" [25mm] Wheel diameter
- Nylon Encapsulated Ball Bearing Wheel
- Side Mount Hanger Plate
- Commercial Grade
- Compatible with 100, 134F Series Track Only
Manufacturer part number: 1128
1742 Door Hanger
1127 1-3/8" [35mm] Side Mount Hanger
2022 Side Mount 1-3/8" [35mm] Door Hanger
- 15lbs [7kg] Weight capacity
- 7/16" [11mm] Wheel diameter
- Solid Nylon Wheel
- Top Mount Hanger Plate
- Residential Grade
- Compatible with 170A Series Track Only
Manufacturer part number: 1742
2022 Side Mount 1-3/8" [35mm] Door Hanger
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
2022 Side Mount 1-3/8" [35mm] Door Hanger
- 1-3/8" [35mm] Door Thickness Only
- Carrier and Door Plate Separate with Locking Clip
- Height adjustable with adjustment bolt and lock nut
- Compatible with 200 Series Track only
Manufacturer part number: 2022
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
- 1-3/8" [35mm] Door Thickness Only
- Adjustment Bolt and Lock Nut NOT Included
Manufacturer part number: 2042
2071 Glass Door Plate
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
2042 Side Mount 1-3/8" [35mm] Door Hanger Plate
- SINGLE PLATE, 2 PLATES REQUIRED PER DOOR
- 1/2" [12mm] Door Thickness
- Compatible with 2020 Hanger Only
- Convert 2000 and 2060 Pocket Door Frames to Accept Glass Door
Manufacturer part number: 2071
2802 Johnson 7/8" Diameter Pocket Door Hanger
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
2802 Johnson 7/8" Diameter Pocket Door Hanger
Manufacturer part number: 2802
2812 Johnson 7/8" Diameter Pocket Door Hanger
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
2802 Johnson 7/8" Diameter Pocket Door Hanger
Manufacturer part number: 2812
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
Manufacturer part number: 2815
2021 Hanger Plate Assembly
2228 3/8" Offset Johnson Track Hanger
2815 Johnson 7/8" Diameter BB Pocket Door Hanger
- Hanger Plate Assembly Only, Carrier NOT Included.
- Compatible with 2020 Hanger Type Only.
Manufacturer part number: 2021
2075 Sliding Glass Door Hanger
2228 3/8" Offset Johnson Track Hanger
2228 3/8" Offset Johnson Track Hanger
- 1/2" [12mm] Door Thickness Only
- Glass machining required
- Carrier and Door Plate Separate with Locking Clip
- Height adjustable with adjustment bolt and lock nut
- Compatible with 200 Series Track only
Manufacturer part number: 2075
2228 3/8" Offset Johnson Track Hanger
2228 3/8" Offset Johnson Track Hanger
2228 3/8" Offset Johnson Track Hanger
- 75lbs [34kg] Weight capacity
- .875" [22mm] Wheel diameter
- Solid Nylon Wheel
- Height Adjustable
- Side Mount Hanger Plate
- Residential Grade
- Compatible with 2200, 2200F, 2204F, 2222 Series Track Only
Manufacturer part number: 2228
2238 3/8" Offset Johnson Track Hanger
2336 Universal 1/16" Offset 3/4" Dia. "V" Track Bypass Hanger
2312 Universal 7/8" Dia. "V" Track Bypass Hanger
- 50lbs [23kg] Weight capacity
- .875" [22mm] Wheel diameter
- Solid Nylon Wheel
- Height Adjustable
- Side Mount Hanger Plate
- Residential Grade
- Compatible with 2200, 2200F, 2204F, 2222, 1138 and 1166 Series Track Only
Manufacturer part number: 2238
2312 Universal 7/8" Dia. "V" Track Bypass Hanger
2336 Universal 1/16" Offset 3/4" Dia. "V" Track Bypass Hanger
2312 Universal 7/8" Dia. "V" Track Bypass Hanger
Manufacturer part number: 2312
2336 Universal 1/16" Offset 3/4" Dia. "V" Track Bypass Hanger
2336 Universal 1/16" Offset 3/4" Dia. "V" Track Bypass Hanger
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
Manufacturer part number: 2336
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
Manufacturer part number: 2376
2378 Universal 3/8" Offset 7/8" Diameter "V" Track Bypass Hanger
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
2378 Universal 3/8" Offset 7/8" Diameter "V" Track Bypass Hanger
Manufacturer part number: 2378
2338 Universal 3/8" Offset 3/4" Diameter "V" Track Bypass Hanger
2376 Universal 1/16" Offset 7/8" Diameter "V" Track Bypass Hanger
2378 Universal 3/8" Offset 7/8" Diameter "V" Track Bypass Hanger
Manufacturer part number: 2338
Track
200 Series Track
200WF Series Fascia
200WF Series Fascia
- 192" (16'- 0") [4877mm] Max. Length
- Commercial/Residential Application
- I-Beam Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
200WF Series Fascia
200WF Series Fascia
200WF Series Fascia
- Fascia Lengths for 200WM/WF Series Wall Mount "Barn Door" Hardware.
- 192" (16'- 0") [4877mm] Max. Length
- Commercial/Residential Application
- Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Anodized Aluminum Track Finish
100 Series Track
200WF Series Fascia
1050 Bottom Guide Track
- 192" (16'- 0") [4877mm] Max. Length
- Commercial/Residential Application
- Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
1050 Bottom Guide Track
118F Series Bypass / Fascia Track
1050 Bottom Guide Track
- 144" (12'- 0") [3658mm] Max. Length
- U Channel Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
111 Series Track
118F Series Bypass / Fascia Track
118F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
118F Series Bypass / Fascia Track
118F Series Bypass / Fascia Track
118F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 1-1/8" (29mm) Door Thickness
- Twin Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
138F Series Bypass / Fascia Track
138F Series Bypass / Fascia Track
138F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 1-3/8" (35mm) Door Thickness
- Twin Box W/Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade or Anodized Aluminum Track Finish
134F Series Bypass / Fascia Track
138F Series Bypass / Fascia Track
138F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 1-3/4" (44mm) Door Thickness
- Twin Box W/Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade or Anodized Aluminum Track Finish
1700 Series Folding Door Track
138F Series Bypass / Fascia Track
1700 Series Folding Door Track
- 96" (8'- 0") [2438mm] Max. Length
- Box Track Profile
- Rolled Steel Track Material
- Enamel Paint Track Finish
170A Series Folding Door Track
170A Series Folding Door Track
1700 Series Folding Door Track
- 96" (8'- 0") [2438mm] Max. Length
- Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Track Finish
1700RD Multi-Fold Door Track
170A Series Folding Door Track
1825 Series Folding Door Track
- 192" (16'- 0") [4877mm] Max. Length
- Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Track Finish
1825 Series Folding Door Track
170A Series Folding Door Track
1825 Series Folding Door Track
- 96" (8'- 0") [2438mm] Max. Length
- Box Track Profile
- Rolled Steel Track Material
- Enamel Paint Track Finish
2200 Series Bypass Track
2200F Series Bypass / Fascia Track
2200F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 3/4" or 1-3/8" (35mm) Door Thickness
- Twin Rail J Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
2200F Series Bypass / Fascia Track
2200F Series Bypass / Fascia Track
2200F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 1-3/8" (35mm) Door Thickness
- Twin Rail J W/Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
2204F Series Bypass / Fascia Track
2200F Series Bypass / Fascia Track
2204F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 3/4" (19mm) Door Thickness
- Twin Rail J W/Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
2222 Series Bypass Header Track
2222 Series Bypass Header Track
2204F Series Bypass / Fascia Track
- 192" (16'- 0") [4877mm] Max. Length
- 1-3/8" (35mm) Door Thickness
- Twin Rail J Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
2610F Series Wall Mount Track
2222 Series Bypass Header Track
2800F Series Open Pocket Track
- 192" (16'- 0") [4877mm] Max. Length
- Box Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade or Anodized Aluminum Track Finish
2800F Series Open Pocket Track
2222 Series Bypass Header Track
2800F Series Open Pocket Track
- 192" (16'- 0") [4877mm] Max. Length
- Single Rail J W/Fascia Track Profile
- 6063T6 Extruded Aluminum Track Material
- Mill Grade Aluminum Track Finish
Door Pulls and Knobs
15 Series Flush Pulls
15 Series Flush Pulls
15 Series Flush Pulls
- 7/8" [22mm] Diameter
- US3, US15 Finishes
- Press In Installation
Part # 15-3PPK3 , 15US15
30 Series Flush Pulls
15 Series Flush Pulls
15 Series Flush Pulls
- 2-1/8" [28mm] Diameter
- US3, US5, US15, White, Black Finishes
- Press In Installation
Part # 30-3PPK2 , 30-5PPK2 , 30-15PK2 , 30BLK , 30WHT
35 Series Flush Pulls
15 Series Flush Pulls
35 Series Flush Pulls
- 1-3/8" [34mm] x 3" [75mm] Dimension
- US3, US5, US15 Finishes
- Screw In Installation
Part # 35-3PPK2 , 35-5PPK2 , 35-15PK2
40 Series Flush Pulls
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
35 Series Flush Pulls
- 1-3/8" [34mm] x 3" [75mm] Dimension
- US3, US15 Finishes
- Screw In Installation
Part # 40-15PK2 , 40-3PPK2
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
- 1-3/8" [35mm] Door Thickness
- 2-1/8" [28mm] Lock Bore
- Dummy Lock Function
- US3 Bright Brass Finish
Manufacturer part number: 21-3PPK2
134US3 1-3/4" Dummy Pocket Door Pull Set
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
21-3PPK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
- 1-3/4" [44mm] Door Thickness
- 2-1/8" [28mm] Cross Bore Door Prep
- US3 Bright Brass Finish
Manufacturer part number: 134US3
121US5 1-3/8" Dummy Pocket Door Pull Set
121US5 1-3/8" Dummy Pocket Door Pull Set
121US5 1-3/8" Dummy Pocket Door Pull Set
- 1-3/8" [35mm] Door Thickness
- 2-1/8" [28mm] Cross Bore Door Prep
- US5 Antique Brass Finish
Manufacturer part number: 121US5
121BLK 1-3/8" Pocket Door Dummy Pull Set
121US5 1-3/8" Dummy Pocket Door Pull Set
121US5 1-3/8" Dummy Pocket Door Pull Set
- 1-3/8" [35mm] Door Thickness
- 2-1/8" [28mm] Cross Bore Door Prep
- Black Finish
Manufacturer part number: 121BLK
134BLK 1-3/4" Pocket Door Dummy Pull Set
121US5 1-3/8" Dummy Pocket Door Pull Set
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
- 1-3/4" [44mm] Door Thickness
- 2-1/8" [28mm] Cross Bore Door Prep
- Dummy Function
- Black Finish
Manufacturer part number: 134BLK
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
- 1-3/8" [35mm] Door Thickness
- 2-1/8" [28mm] Lock Bore
- Dummy Lock Function
- US15 Satin Nickel Finish
Manufacturer part number: 21-15PK2
134US15 1-3/4" Dummy Pocket Door Pull Set
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
134US15 1-3/4" Dummy Pocket Door Pull Set
- 1-3/4" [44mm] Door Thickness
- 2-1/8" [28mm] Cross Bore Door Prep
- US15 Satin Nickel Finish
Manufacturer part number: 134US15
33--PPK2 Knob Set (2)
21-15PK2 Pocket Door Lock Dummy Pull Set, 1-3/8" Door
134US15 1-3/4" Dummy Pocket Door Pull Set
- Woodtone Styrene Plastic
- Size: 1-3/4" [44mm] Dia.
Manufacturer part number: 33--PPK2
36--PPK2 Wood Knob Set
36--PPK2 Wood Knob Set
36--PPK2 Wood Knob Set
Manufacturer part number: 36--PPK2
37--PLBG Knob
36--PPK2 Wood Knob Set
36--PPK2 Wood Knob Set
- White Styrene Plastic
- Size: 1-3/4" [44mm] Dia.
Manufacturer part number: 37--PLBG
38-3PPK1 Brass Knob
36--PPK2 Wood Knob Set
38-3PPK1 Brass Knob
- Finish: US3 Bright Brass
- Size: 1-1/2" [38mm] Dia.
Manufacturer part number: 38-3PPK
Sliding Door Guides
10 Center Guide Post
101 Bypass Guide Post Set
101 Bypass Guide Post Set
Manufacturer part number: 10
101 Bypass Guide Post Set
101 Bypass Guide Post Set
101 Bypass Guide Post Set
Manufacturer part number: 101
11 Offset Guide Post
101 Bypass Guide Post Set
Manufacturer part number: 12
Manufacturer part number: 11
Manufacturer part number: 12
1731 Side Mount Door Guide, 3/4" [19mm] Panel
Manufacturer part number: 12
Manufacturer part number: 12
1705 Top/Bottom Guide
1731 Side Mount Door Guide, 3/4" [19mm] Panel
1731 Side Mount Door Guide, 3/4" [19mm] Panel
- Top/Bottom Door Guide for Sliding and Folding Door Installations
Manufacturer part number: 1705
1731 Side Mount Door Guide, 3/4" [19mm] Panel
1731 Side Mount Door Guide, 3/4" [19mm] Panel
1731 Side Mount Door Guide, 3/4" [19mm] Panel
- 1700 Series Folding Door Side Mount Door Guide Panel Thickness: 3/4"
Manufacturer part number: 1731
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
- 1700 Series Folding Door Side Mount Door Guide Panel Thickness: 1-1/8"
Manufacturer part number: 1732
1733 Side Mount Door Guide, 1-3/8" [35mm] Panel
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
- 1700 Series Folding Door Side Mount Door Guide Panel Thickness: 1-3/8"
Manufacturer part number: 1733
1774 Side Mount Door Guide, 3/4" [19mm] Panel
1732 Side Mount Door Guide, 1-1/8" [29mm] Panel
1774 Side Mount Door Guide, 3/4" [19mm] Panel
- 1700 Series Folding Door Side Mount Door Guide Panel Thickness: 3/4"
Manufacturer part number: 1774
201 Heavy-Duty Bypass Guide Post Set
201 Heavy-Duty Bypass Guide Post Set
1774 Side Mount Door Guide, 3/4" [19mm] Panel
- Steel reinforced nylon capped adjustable door guides hold heavy solid doors securely in place.
Manufacturer part number: 201
2030 Guide Post
201 Heavy-Duty Bypass Guide Post Set
2030 Guide Post
Manufacturer part number: 2030
2031 Guide Post
201 Heavy-Duty Bypass Guide Post Set
2030 Guide Post
- Manufacturer part number: 2031
2032 Side Mount 1-3/8" [35mm} Door Guide
2032 Side Mount 1-3/8" [35mm} Door Guide
2032 Side Mount 1-3/8" [35mm} Door Guide
- Side Mount 1-3/8" Door Guide
Manufacturer part number: 2032
2033 Side Mount 1-3/4" [44mm] Door Guide
2032 Side Mount 1-3/8" [35mm} Door Guide
2032 Side Mount 1-3/8" [35mm} Door Guide
- Side Mount 1-3/4" Door Guide
Manufacturer part number: 2033
2034 1-3/4" [44mm] Bypass Door Guide
2032 Side Mount 1-3/8" [35mm} Door Guide
2034 1-3/4" [44mm] Bypass Door Guide
- Sliding Bypass Guide for 1-3/4" Doors
Manufacturer part number: 2034
2035 1-3/8" [35mm] Bypass Door Guide
2036 Side Mount 2-1/4" [57mm] Door Guide
2034 1-3/4" [44mm] Bypass Door Guide
- Sliding Bypass Guide for 1-3/8" Doors
Manufacturer part number: 2035
2036 Side Mount 2-1/4" [57mm] Door Guide
2036 Side Mount 2-1/4" [57mm] Door Guide
2036 Side Mount 2-1/4" [57mm] Door Guide
- Side Mount 2-1/4" Door Guide
Manufacturer part number: 2036
2037 Door Guide
2036 Side Mount 2-1/4" [57mm] Door Guide
2036 Side Mount 2-1/4" [57mm] Door Guide
- Door Guide for 1-3/4" Doors
Manufacturer part number: 2037
2038 Door Guide
2078 Sliding Glass Door Guide
2040 Door Guide Cover Plate
- Door Guide for 1-3/8" Doors
Manufacturer part number: 2038
2040 Door Guide Cover Plate
2078 Sliding Glass Door Guide
2040 Door Guide Cover Plate
- Plate used to cover guide grooves routed in door bottom.
Manufacturer part number: 2040
2078 Sliding Glass Door Guide
2078 Sliding Glass Door Guide
2078 Sliding Glass Door Guide
- Sliding glass door guide for 1/2" thick [12mm] glass.
Manufacturer part number: 2078
2118 Bypass Door Guide
2135 3/4" or 1-3/8" Bypass Door Guide
2078 Sliding Glass Door Guide
- Sliding Bypass Guide for 1-1/8" Doors
Manufacturer part number: 2118
2134 Bypass Door Guide
2135 3/4" or 1-3/8" Bypass Door Guide
2135 3/4" or 1-3/8" Bypass Door Guide
- Sliding Bypass Guide for 1-1/8" or 1-3/4" Doors
Manufacturer part number: 2134
2135 3/4" or 1-3/8" Bypass Door Guide
2135 3/4" or 1-3/8" Bypass Door Guide
2135 3/4" or 1-3/8" Bypass Door Guide
- Sliding Bypass Guide for 3/4" or 1-3/8" Doors
Manufacturer part number: 2135
2175 Bypass Door Guide
2175 Bypass Door Guide
2175 Bypass Door Guide
- Sliding Bypass Guide for 3/4" Doors
Manufacturer part number: 2175
2138 Bypass Door Guide
2175 Bypass Door Guide
2175 Bypass Door Guide
- Sliding Bypass Guide for 1-3/8" Doors
Manufacturer part number: 2138
412118 Outer Guide Post
412119 Center Guide Post
412119 Center Guide Post
- Replacement Outer Guide Post for 2118, 2134, 2135, 2175 Door Guides
Manufacturer part number: 412118
412119 Center Guide Post
412119 Center Guide Post
412119 Center Guide Post
- Replacement Center Guide Post for 2118, 2134, 2135, 2175 Door Guides
Manufacturer part number: 412119
Pocket Door Guides
1550 Pocket Door Guide Set
2040 Door Guide Cover Plate
1550 Pocket Door Guide Set
- Jamb Mount Pocket Door Guide Set
Manufacturer part number: 1550
2551 Pocket Door Guide
2040 Door Guide Cover Plate
1550 Pocket Door Guide Set
- 1-3/8" Pocket Door Guide
Manufacturer part number: 2551
2040 Door Guide Cover Plate
2040 Door Guide Cover Plate
2041PLBG Hidden Pocket Door Guide Kit
- Plate used to cover guide grooves routed in door bottom.
Manufacturer part number: 2040
2041PLBG Hidden Pocket Door Guide Kit
2083 Pocket Door Guide (finished floor)
2041PLBG Hidden Pocket Door Guide Kit
Manufacturer part number: 2041PLBG
2083 Pocket Door Guide (finished floor)
2083 Pocket Door Guide (finished floor)
2083 Pocket Door Guide (finished floor)
Manufacturer part number: 2083
2084 Pocket Door Guide (sub floor)
2083 Pocket Door Guide (finished floor)
2083 Pocket Door Guide (finished floor)
Manufacturer part number: 2084
2081PLBG Pocket Glass Door Guide Set
2088 Pocket Glass Door Guide (Finish Floor)
2087 Pocket Glass Door Guide (Sub Floor)
- Guide Set for 1/2" Glass Pocket Door.
- Compatible with 2000 and 2060 Pocket Door Frames only.
Manufacturer part number: 2081PLBG
2087 Pocket Glass Door Guide (Sub Floor)
2088 Pocket Glass Door Guide (Finish Floor)
2087 Pocket Glass Door Guide (Sub Floor)
Manufacturer part number: 2087
2088 Pocket Glass Door Guide (Finish Floor)
2088 Pocket Glass Door Guide (Finish Floor)
2088 Pocket Glass Door Guide (Finish Floor)
Manu facturer part number: 2088
Track Stops
1155 Track Stop
1155 Track Stop
1155 Track Stop
- Track Stop for 100, 111, 134F, 138F and 2610F Series Track
Manufacturer part number: 1155
1713 Track Stop
1155 Track Stop
1155 Track Stop
- Track Stop for 1700/170A/1800 Series Track
Manufacturer part number: 1713
1812 Track Stop
1155 Track Stop
1812 Track Stop
- 2-Panel Folding Door Track Stop for 1800 Series Track
Manufacturer part number: 1812
1814 Track Stop
1814 Track Stop
1812 Track Stop
- 4-Panel Folding Door Track Stop for 1800 Series Track
Manufacturer part number: 1814
2055 Track Stop
1814 Track Stop
2055 Track Stop
- Track Stop for 200 Series Track
Manufacturer part number: 2055
2165 Track Stop
1814 Track Stop
2055 Track Stop
- Track Stop for 1166, 1138, 2200, 2200F, 2204F, 2222, 2800, 2800F Series Track
Manufacturer part number: 2165
